All-in-One Lightweight GIS Platform

FlatGeobuf is a high-performance binary-encoded vector geographic data format designed for processing large-scale static geographic data. It utilizes FlatBuffers technology for compact storage and fast read/write speeds. It features a built-in Packed Hilbert R-Tree spatial index and supports streaming and on-demand loading, significantly improving network transmission efficiency and rendering speed. It is particularly well-suited for scenarios requiring efficient processing of massive amounts of geospatial data. As an open-source format, FlatGeobuf is compatible with mainstream tools such as GDAL, QGIS, and GeoServer, and supports multi-language implementations, making it an ideal alternative to traditional Shapefiles and GeoJSON.

LandXML is an XML-based civil engineering data exchange format primarily used for sharing infrastructure design data such as roads, terrain, and land parcels between different CAD platforms. It uses standardized data structures to transfer geometric information (such as surfaces and COGO points) and attribute data between software like Autodesk Civil 3D. It supports specialized parameters such as northing/easting/elevation coordinate systems and station number disconnection. This format is particularly suitable for terrain processing and survey data import, effectively reducing model conversion time and maintaining data integrity.

TIGER is a topological vector data model developed by the U.S. Census Bureau for storing and managing geospatial data. This model explicitly records the topological relationships between points, lines, and surfaces, preserving spatial adjacency information between objects. It is widely used in fields such as demographics and urban planning. Its data format supports efficient spatial query and analysis, forming a crucial foundation for early Geographic Information Systems (GIS).

NITF (National Imagery Transmission Format) is a specialized imagery data format developed by the United States Department of Defense, primarily for the storage and transmission of high-definition grayscale and color imagery for military and intelligence purposes. This format supports multiple compression methods (such as JPEG and JPEG2000) and integrates text, graphics, and metadata into a single file, conforming to the ISO/IEC 15444-1 standard. Features include high-precision geographic coordinate support (via IGELO or RPC metadata) and cross-platform compatibility (parsable with tools such as GDAL), making it widely used for satellite imagery, aerial photography, and government data exchange.

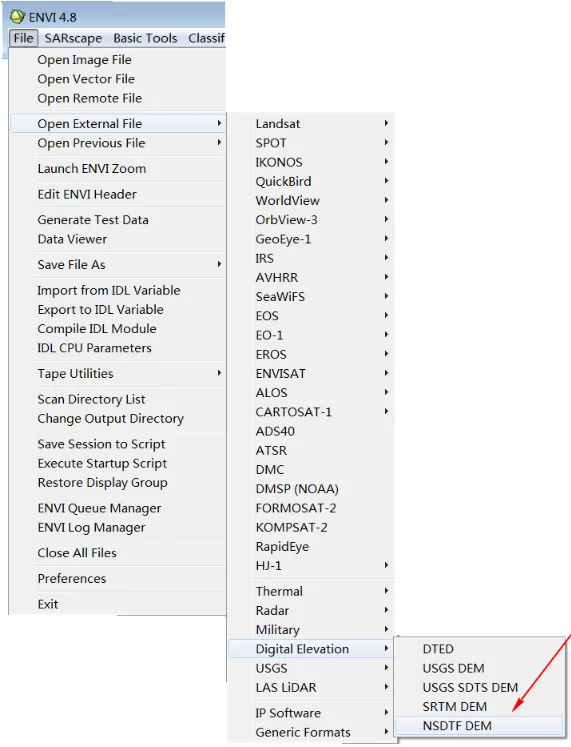

USGS DEM is an open DEM data format standard defined by the United States Geological Survey (USGS). It uses ASCII code for storage and consists of three logical records: A (file header), B (section data), and C (precision information). Each logical record unit is fixed at 1024 bytes. This format supports both UTM projection and geographic coordinate (seconds) grid types, and the data range covers a variety of geographic grid products, including 7.5 minutes, 30 minutes, and 1 degree. Its files can be directly read and converted to common raster formats using tools such as ArcGIS. The GDAL library natively supports parsing and can automatically identify coordinate systems and elevation units (meters/feet).

DTED (Digital Terrain Elevation Data) is a regularly gridded dataset representing Earth's surface elevation. Designed by the U.S. National Geological Information Service, it is widely used in fields such as military navigation and disaster response. The data is classified into different resolution levels (e.g., DTED0, DTED1, and DTED2), corresponding to resolutions of 900 meters, 90 meters, and 30 meters, respectively. The latest data may reach DTED3 (12 meters). File names are based on longitude and latitude (e.g., E000 for 0-1 degrees east longitude, N05 for 5-6 degrees north latitude), with the suffix indicating the level (e.g., .DT1 for DTED1).

GeoVRML (Geographic Virtual Reality Modeling Language) is an extension of VRML (Virtual Reality Modeling Language) designed specifically for the 3D visualization of geospatial data. It uses standardized tags to describe terrain, coordinate systems, and geographic objects, enabling the sharing and interaction of 3D geographic scenes over the internet. It is commonly used for virtual simulation in fields such as Digital Earth and urban planning.

LVB is a proprietary geospatial data format developed by Beijing SuperMap Software Company, primarily used for storing and managing vector map data. Optimized for the SuperMap GIS platform, it supports efficient spatial data compression and fast retrieval, making it a popular choice for professional geographic information system applications in areas such as land planning and smart cities. It boasts strong compatibility and seamless integration with the SuperMap suite of software.

CNSDTF (China National Standard Geospatial Data Exchange Format) is a national standard for geographic information system (GIS) data exchange in China. It unifies the storage and transmission formats of spatial data, such as vector and raster data, and addresses data compatibility issues across different platforms. Its core goal is to enable efficient cross-system sharing through structured file headers, feature parameters, and separated geometry/attribute data. It is widely used in fields such as land planning and environmental monitoring.

S57 (Standard for Electronic Navigational Charts) is an international standard developed by the International Hydrographic Organization (IHO) for the exchange and display of electronic nautical chart data, primarily used in marine navigation systems. It standardizes the format, structure, and content of chart data, ensuring interoperability between electronic nautical chart systems from different manufacturers, providing ships with accurate and unified critical navigation information such as water depth, channel, and obstacles. In short, S57 is the "universal language" of electronic nautical charts, ensuring safe and efficient maritime navigation.
