SDE (Spatial Database Engine)

GISBox is a one-stop 3D GIS data editing, conversion and publishing platform that supports editing in multiple GIS formats such as OSGB/GEOTIFF/RVT, converting to 3DTiles/Terrain and publishing.

Introduction

SDE (Spatial Database Engine) is a software component used to manage and store geospatial data. SDE is a technology developed by Esri that is used to interact with geographic database systems and provide efficient management, query, and editing of spatial data.

Data Format

DData format overview

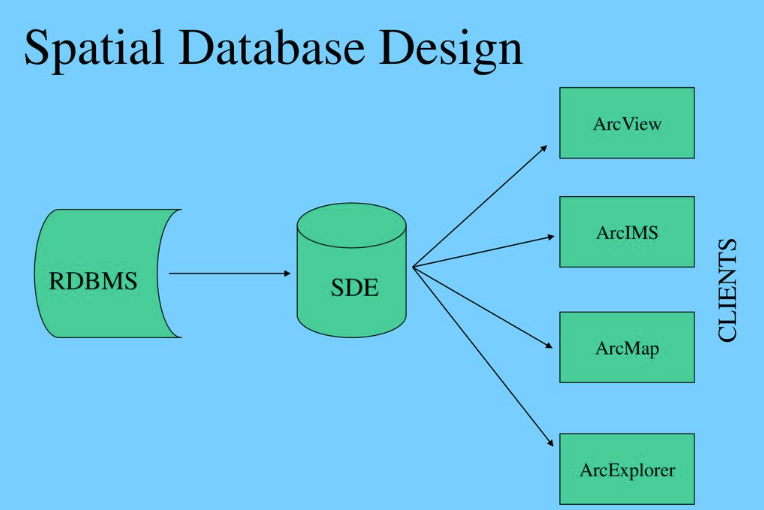

Since SDE files refer to geospatial data stored in a relational database (RDBMS), they are not a standalone file format, but are used in conjunction with the following major database systems.

Compatible RDBMS

Oracle
Microsoft SQL Server
PostgreSQL (used with the PostGIS extension)
IBM Db2
SAP HANA

Data structure

Vector data (geometry such as points, lines, and polygons)
Raster data (images and terrain data)
Attribute data (metadata in table format)
Topology data (network structure for spatial analysis)

Data management function

Spatial indexes are used to enable high-speed searches and analysis
Version management makes data tracking and updating more efficient
Transaction management function maintains data integrity

Pros

1. Large-scale data management is possible: GIS data can be efficiently managed on an RDBMS, making it suitable for city- or country-level data processing.

2. Centralized data management: All GIS data is integrated into the database, allowing multiple users to access and edit it simultaneously.

3. Advanced spatial analysis: Spatial analysis is possible using SQL queries. Advanced analysis can be achieved by linking with GIS tools.

4. Enhanced transaction management: Multiple users can edit simultaneously while maintaining data consistency.

5. Integration with ArcGIS: High compatibility with Esri’s ArcGIS products allows for optimization of GIS workflows.

Cons

1. Complex setup and management: Since it utilizes an RDBMS, specialized knowledge of database management is required. Initial setup and performance tuning are required.

2. High license costs: ArcSDE requires an Esri software license, and operation is costly.

3. High system load: Since it handles large amounts of data, appropriate server resources (CPU, memory, storage) are required.

4. Limited compatibility with open source GIS: Integration with open source GIS software such as QGIS can be difficult.

Application Scenario

SDE files are particularly useful for organizations and projects that handle large amounts of GIS data. For example, they are suitable for systems in which multiple departments share GIS data, such as local government urban planning, environmental management, transportation network analysis, and infrastructure management. They are also used by companies and research institutions to centrally manage, analyze, and visualize large amounts of geospatial data.
