Introduction

NAD83 (North American Datum 1983) is a geographic coordinate system (geographic reference system) widely used in North America, especially in the United States, Canada, and Mexico. It is a modernized, high-precision version of the previously used NAD27 (North American Datum 1927), developed with a focus on compatibility with GPS technology. Its EPSG code is 4269.

Coordinate System Composition

NAD83 is a geographic coordinate system with the following structure:

1. Coordinate type: Latitude, Longitude (angular units)
2. Ellipsoid: GRS80 (Geodetic Reference System 1980)
3. Geodetic control points: referenced to fixed points on the North American Plate
4. Units: Degrees (decimal degrees)

This data can be saved and shared in a variety of GIS formats, including Shapefile, GeoJSON, KML, GML, and GeoTIFF.

Pros

1. High precision in North America: NAD83 uses an ellipsoid (GRS80) aligned with the North American plate, providing high precision for North American mapping.
2. Compatible with GPS: Highly compatible with GPS data (WGS84), relatively simple conversion, and small actual error.
3. Adopted by many public agencies: It has been officially adopted by the United States Geological Survey (USGS), the National Geospatial Information Service (NGS), and local governments, and is easy to integrate with basic map information.

Cons

1. Not a perfect match with WGS84: NAD83 is not a perfect match with WGS84 used by GPS, and there may be errors of tens of centimeters to several meters. Special attention should be paid to precision measurement and millimeter-level positioning.
2. Regional reference system: NAD83 is designed based on the North American plate, so it is not suitable for other regions (especially Asia and Europe).
3. Mixed versions: NAD83 has multiple adjusted versions (NAD83 (original version), NAD83 (HARN), NAD83 (NSRS2007), NAD83 (2011), etc.), and data consistency is difficult to guarantee.

Application Scenario

NAD83 is widely used in geographic information systems (GIS), surveying, land use planning, infrastructure development, disaster prevention measures, and more, primarily in the United States, but also throughout North America, including Canada and Mexico. In the United States, many national, state, and municipal government agencies have adopted NAD83 as a standard coordinate system and use it as a practical standard in various fields such as public infrastructure planning, map data development, forest and water resource management, urban planning, and road and rail construction. In addition, private surveying companies and construction consultants also work with NAD83-based data on a daily basis, making it the foundation of spatial data operations in North America.

Example

1. NAD83: North American Geodetic Datum 1983.

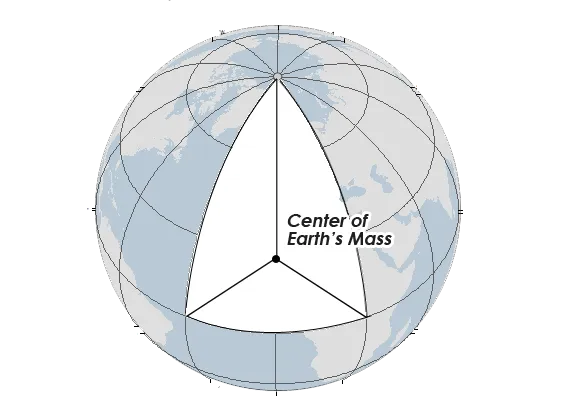

2. NAD83 geocentric datum.

Related GIS Coordinate Systems

GDA2020

ED50

GCS

CGCS2000
