Introduction
OSGB36 is the UK national coordinate system, the full name is Ordnance Survey Great Britain 1936, and its EPSG code is 4277. This coordinate system is based on the Airy 1830 ellipsoid and was developed by the Ordnance Survey of the United Kingdom. It is the national datum for topographic surveying in the United Kingdom. In the fields of geographic information systems (GIS), cartography, and engineering surveying in the United Kingdom, OSGB36 has been widely used, providing a unified reference framework for geospatial data in the United Kingdom, allowing geographic data from different sources to be integrated and analyzed in the same coordinate system.
Coordinate System Composition
The composition of the OSGB36 coordinate system is mainly based on the geodetic coordinate system, and its core elements and composition are as follows:
- **Ellipsoid parameters: **OSGB36 uses the Airy 1830 ellipsoid, whose geometric parameters (such as semi-major axis and flattening) are the basis for defining the coordinate system. As a mathematical approximation of the shape of the earth, the ellipsoid provides a reference surface for coordinate calculation.
- **Projection method: **OSGB36 uses the Transverse Mercator projection to convert three-dimensional ellipsoidal coordinates into two-dimensional plane coordinates. This projection keeps the local shape and angle unchanged through mathematical transformation, and is suitable for small and medium-scale map making in the UK.
- **Datum and origin: **The coordinate system uses the UK as the reference area, and the origin position is defined by a specific datum. The datum and the Airy 1830 ellipsoid together constitute the geometric framework of the coordinate system, ensuring that the coordinate calculation matches the terrain characteristics of the UK.
- **Plane coordinate parameters: **Projection parameters include the central meridian (usually -2° longitude), the base parallel (49°N), the scale factor (0.9996012717), and the easting (400,000 meters) and northing (-100,000 meters). These parameters convert the ellipsoidal coordinates to the plane coordinates (Easting/Northing) of the British National Grid.
- **Coordinate expression: **The final coordinates are presented in the form of plane rectangular coordinates in meters. The easting coordinate (Easting) and the northing coordinate (Northing) represent the horizontal and vertical positions of the point on the projection plane, respectively, forming a regular grid system covering the entire UK.
Pros
- Strong local adaptability: As the national coordinate system of the United Kingdom, OSGB36 is specially designed for the geographical features and surveying and mapping needs of the United Kingdom. It can adapt well to the topography and geographic spatial distribution of the United Kingdom, and has high accuracy and applicability in the processing of geographic information in the United Kingdom.
- **Historical data compatibility: **Due to the long-term use of OSGB36 in the United Kingdom, a large amount of historical geographic data has been accumulated. The use of this coordinate system can be easily compatible and integrated with these historical data, maintaining the consistency and continuity of the data, which is of great significance for historical geographical research and long-term geographical monitoring.
- Professional field recognition: In the professional fields of surveying and mapping, geographic information, engineering construction, etc. in the United Kingdom, OSGB36 has been widely recognized and applied. Relevant professional software and tools provide good support for this coordinate system, which is convenient for professionals to process and analyze data.
Cons
- **Regional limitations: **OSGB36 is mainly applicable to the UK, and its applicability is poor for areas outside the UK. In global geographic information applications, it is difficult to integrate and share data using the OSGB36 coordinate system with data from other regions.
- **Complex conversion with other coordinate systems: **When data based on the OSGB36 coordinate system needs to be converted with other globally common coordinate systems (such as WGS84), the conversion process is more complicated and there are certain errors. This will increase the workload and difficulty of data processing and affect the accuracy and reliability of the data.
- **Challenges of technical updates: **With the development of surveying and mapping technology and geographic information systems, new coordinate systems and surveying and mapping methods continue to emerge. OSGB36 is relatively old, and when responding to some new technologies and application requirements, it may need to be updated and improved, otherwise it may gradually lag behind the development of the times.
Application Scenario
OSGB36 is suitable for geographic information processing, mapping, engineering surveying and historical data research and long-term geographic monitoring in the UK. In these scenarios, it can give full play to its advantages of strong local adaptability and compatibility with historical data. However, when it comes to global data integration or interaction with new coordinate systems, it is necessary to handle conversion complexity and technical adaptation issues with caution.
Example
- Scope of application of OSGB36.

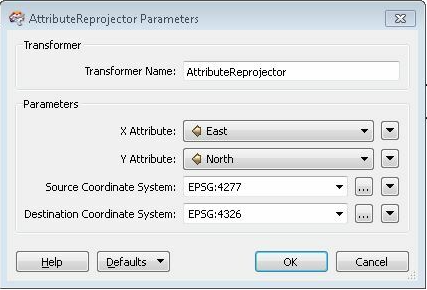

- Coordinate system conversion.
